819 Grand Street
Kings County
Promoting Resilience and Energy Efficiency for Senior Housing in a Mixed-Use Campus
View Project Info View Project Info

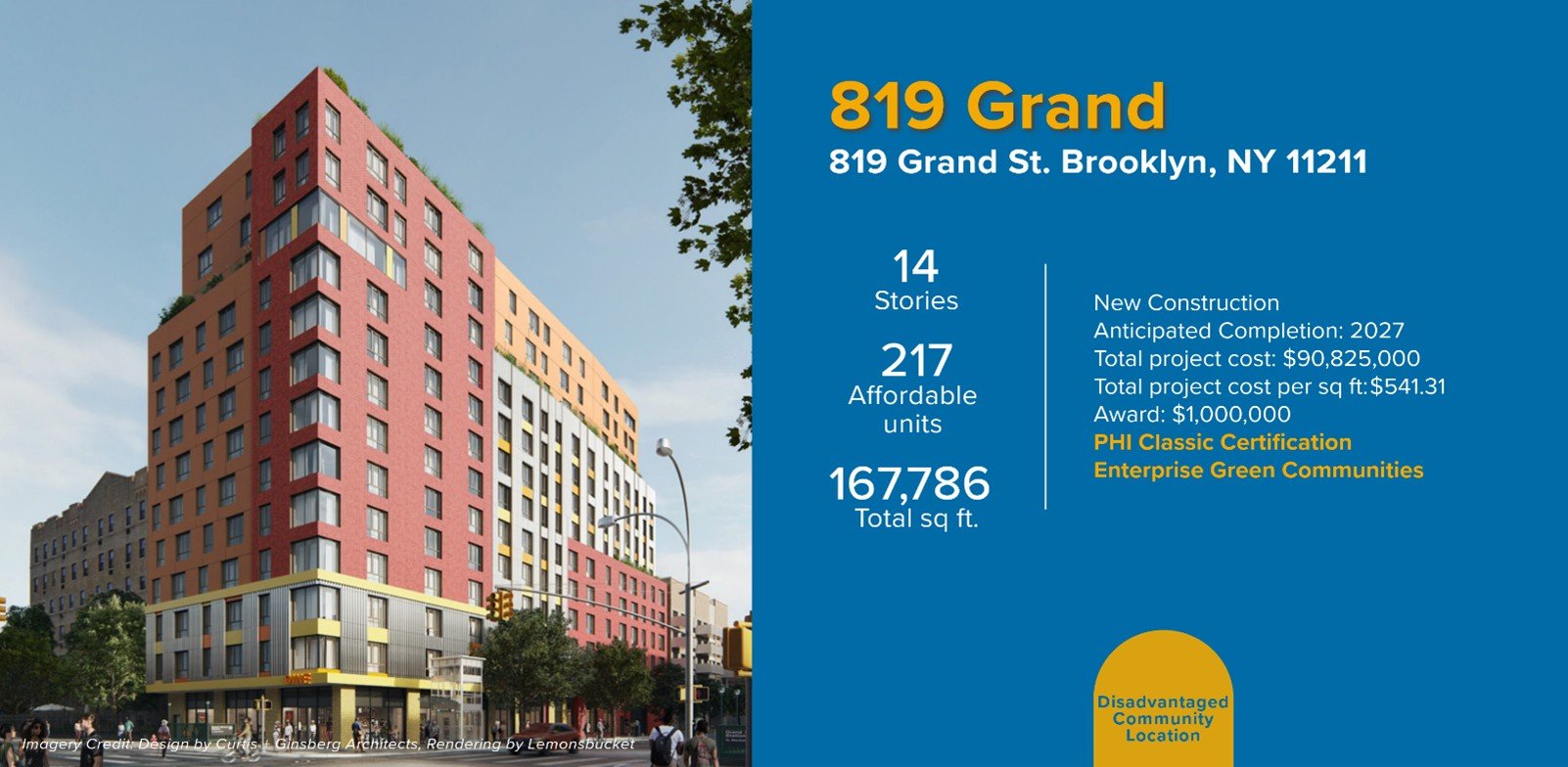

819 Grand Street
14 Stories
217 Affordable units
167,786 Total sq ft.
- New Construction
- Anticipated Completion: 2027
- Total project cost: $90,825,000
- Total project cost per sq. ft.: $541.31
- Award: $1,000,000
- PHI Classic Certification
- Enterprise Green Communities
- Disadvantaged Community Location
Project Description
St. Nicks Alliance, Curtis + Ginsberg Architects, Steven Winter Associates, and Dagher Engineering are leading 819 Grand, an affordable senior housing residence within a designated disadvantaged community in East Williamsburg, Brooklyn that will be a dynamic model for sustainability and energy efficiency. The 217-unit, 14-story, all-electric building is designed to Passive House standards and will utilize geothermal heating and cooling, a rooftop solar canopy, and strong resiliency measures, including an area of refuge with an indefinite energy supply for occupants in case of a power outage. Once complete, 819 Grand will connect to the adjacent building, a 150-unit affordable senior housing residence, to create campus-style affordable senior housing for 367 residents with over 11,000 square feet of amenities, 13,500 square feet of open space, and 5,000 square feet of neighborhood retail space.
Project Status: Schematic Design
Market Sector: High-Rise Multifamily
Developed by: St. Nicks Alliance (opens in new window)
Designed by: Curtis + Ginsberg Architects (opens in new window)
Notable Technical Attributes
- High-performance envelope
- Triple-pane windows
- Mineral wool insulation
- Heating/cooling - packaged terminal heat pumps (PTHP)
- Domestic hot water - air source heat pumps (ASHP)
- Centralized energy recovery ventilation (ERV)
- Minimum Efficiency Reporting Value (MERV) 14 Filtration
- Heat pump clothes dryers
- Induction cooktop
Resilience, Passive and Active Survivability
- Building is located outside of the 500-year floodplain
- Mechanical ventilation supplied to common areas during power outages
- Outlets and refrigerator operational in common areas
- Area of refuge for residents
- Storm water managed through permeable and planted surfaces
Site Features
- Two electric vehicle charging stations
- Interior Bike Storage for 14 Bikes
- Within ¼ mile of a bus stop
- Within ½ mile of other mass transit
Media
Mark Ginsberg of Curtis + Ginsberg Architects discusses 819 Grand Street and Round 4 of the NYSERDA Buildings of Excellence Competition.
